Topic 2 – Cells and control Revision Notes

    Subject: Biology | Level: GCSE | Exam Board: Edexcel

    Master the fundamentals of how cells divide, differentiate, and communicate. This topic is essential for understanding growth, repair, and the nervous system, and frequently features in high-mark extended response questions.

    Revision Notes & Key Concepts

    ![Cells and Control: Key structures and processes](https://xnnrgnazirrqvdgfhvou.supabase.co/storage/v1/object/public/study-guide-assets/guide_ec40d5bc-b8fb-4cf3-9ddd-cfb23db94e7c/header_image.png) ## Overview Welcome to Topic 2: Cells and Control. This topic explores the fascinating mechanisms that allow a single fertilised egg to develop into a complex, multicellular organism, and how that organism coordinates its responses to the environment. Understanding cell division, stem cells, and the nervous system is fundamental to Biology because these processes underpin growth, repair, and survival. Examiners frequently test this topic through a mix of short recall questions (like naming the stages of mitosis) and longer, application-based questions (such as evaluating the use of stem cells or explaining the pathway of a reflex arc). Synoptic links are common here, especially connecting cell division to cancer (Topic 1) or linking the nervous system to homeostasis (Topic 7). Listen to the podcast episode below for a comprehensive overview of the key concepts and exam techniques. ![Cells and Control Audio Revision](https://xnnrgnazirrqvdgfhvou.supabase.co/storage/v1/object/public/study-guide-assets/guide_ec40d5bc-b8fb-4cf3-9ddd-cfb23db94e7c/cells_and_control_podcast.mp3) ## Key Concepts ### Concept 1: The Cell Cycle and Mitosis Every living cell goes through a cycle of growth and division known as the cell cycle. The most significant part of this cycle for your exam is **mitosis**, which is the process where a single parent cell divides to produce two genetically identical daughter cells. This is crucial for growth, repairing damaged tissues, and asexual reproduction. Before mitosis can occur, the cell must go through **interphase**. During interphase, the cell grows, synthesises new organelles (like mitochondria and ribosomes), and critically, replicates its DNA so that there are two copies of every chromosome. ![The Cell Cycle](https://xnnrgnazirrqvdgfhvou.supabase.co/storage/v1/object/public/study-guide-assets/guide_ec40d5bc-b8fb-4cf3-9ddd-cfb23db94e7c/cell_cycle_diagram.png) Mitosis itself is divided into four main stages, which you must learn in order: 1. **Prophase**: The nucleus starts to break down and spindle fibres appear. The chromosomes condense and become visible. 2. **Metaphase**: The chromosomes line up along the equator (middle) of the cell. 3. **Anaphase**: The spindle fibres contract, pulling the sister chromatids to opposite poles (ends) of the cell. 4. **Telophase**: A new nuclear membrane forms around each set of chromosomes. Following telophase, the cell membrane and cytoplasm divide to form two separate cells. This final step is called **cytokinesis**. ![The Stages of Mitosis](https://xnnrgnazirrqvdgfhvou.supabase.co/storage/v1/object/public/study-guide-assets/guide_ec40d5bc-b8fb-4cf3-9ddd-cfb23db94e7c/mitosis_stages_diagram.png) **Why this works**: By replicating the DNA first and then carefully separating the copies using spindle fibres, the cell ensures that each new daughter cell receives an exact, complete set of genetic instructions. ### Concept 2: Growth and Differentiation Growth in multicellular organisms involves three processes: cell division (mitosis), cell elongation (especially in plants, where cells expand to take up more space), and cell differentiation. **Differentiation** is the process by which an unspecialised cell becomes specialised to perform a specific function. For example, a generic animal cell might differentiate into a red blood cell (losing its nucleus to carry more oxygen) or a muscle cell (developing lots of mitochondria for contraction). ### Concept 3: Stem Cells Stem cells are unspecialised cells that retain the ability to divide and differentiate into various cell types. They are essential for development and tissue repair. - **Embryonic stem cells**: Found in early embryos. They are **pluripotent**, meaning they can differentiate into almost any type of cell in the body. - **Adult stem cells**: Found in specific tissues like bone marrow. They are **multipotent**, meaning they can only differentiate into a limited range of cell types (e.g., bone marrow stem cells typically only produce blood cells). - **Meristems (Plants)**: Found in the growing tips of roots and shoots. Unlike animal cells, plant meristem cells retain the ability to differentiate into any type of plant cell throughout the plant's entire life. **Exam Focus**: You are often asked to evaluate the use of stem cells in medicine. While they offer potential cures for conditions like paralysis or diabetes, the use of embryonic stem cells raises ethical issues regarding the destruction of potential human life, and there are clinical risks such as the cells dividing uncontrollably to form tumours. ### Concept 4: The Nervous System The human nervous system allows us to detect changes in our environment (stimuli) and coordinate appropriate responses. It consists of the **Central Nervous System (CNS)** — the brain and spinal cord — and the peripheral nervous system (the nerves connecting the CNS to the rest of the body). Information is transmitted as electrical impulses along specialised cells called **neurones**. ![Structure of a Motor Neuron](https://xnnrgnazirrqvdgfhvou.supabase.co/storage/v1/object/public/study-guide-assets/guide_ec40d5bc-b8fb-4cf3-9ddd-cfb23db94e7c/neuron_structure_diagram.png) There are three main types of neurones you need to know: 1. **Sensory neurones**: Carry electrical impulses from receptors (e.g., in the skin or eyes) to the CNS. 2. **Relay neurones**: Found within the CNS, they connect sensory neurones to motor neurones. 3. **Motor neurones**: Carry electrical impulses from the CNS to effectors (muscles or glands), which carry out the response. Neurones are adapted for their function. They have a long **axon** to carry impulses over long distances. The axon is often surrounded by a **myelin sheath**, which acts as an electrical insulator, speeding up the transmission of the impulse. ### Concept 5: Synapses and Reflexes Where two neurones meet, there is a tiny gap called a **synapse**. Electrical impulses cannot jump this gap. Instead, the signal is transmitted chemically. When an electrical impulse reaches the end of the presynaptic neurone, it triggers the release of chemical messengers called **neurotransmitters** from vesicles. These neurotransmitters diffuse across the synaptic cleft and bind to specific receptors on the postsynaptic neurone. This binding triggers a new electrical impulse in the next neurone. **Reflex arcs** are automatic, rapid responses to stimuli that do not involve conscious thought from the brain. They are essential for protecting the body from harm. The pathway is: **Stimulus → Receptor → Sensory neurone → Relay neurone (in spinal cord) → Motor neurone → Effector → Response**. ## Mathematical/Scientific Relationships ### Magnification Equation **Must memorise** $$ ext{Magnification} = rac{ ext{Image Size}}{ ext{Actual Size}}$$ - **Image Size**: The size of the object as it appears in the drawing or photograph. - **Actual Size**: The real-life size of the object. - **Note**: Ensure both Image Size and Actual Size are in the same units before calculating. You will frequently need to convert between millimetres (mm) and micrometres ($\mu m$). - $1 ext{ mm} = 1000 ext{ } \mu m$ ### Percentile Charts Examiners often test your ability to interpret growth charts (e.g., baby mass or head circumference) using percentiles. If a baby is on the 75th percentile for mass, it means they are heavier than 75% of babies of the same age, and lighter than 25%. ## Practical Applications Understanding the nervous system is directly applied in medical testing, such as testing reflex times to assess neurological health. Stem cell research is currently one of the most heavily funded areas of medical science, with ongoing trials for treating conditions like macular degeneration (blindness) and leukaemia.

    Key Terms & Definitions

    Mitosis
    A type of cell division that produces two genetically identical diploid daughter cells.
    Stem Cell
    An unspecialised cell that can divide and differentiate into different types of specialised cells.
    Differentiation
    The process by which an unspecialised cell becomes specialised to perform a specific function.
    Synapse
    The tiny gap between two neurones across which chemical neurotransmitters diffuse.
    Myelin Sheath
    A fatty layer surrounding the axon of a neurone that acts as an electrical insulator and speeds up impulse transmission.
    Reflex Arc
    The nerve pathway involved in a reflex action, bypassing conscious areas of the brain for a faster response.

    Worked Examples

    Practice Questions

    Topic 2 – Cells and control

    Edexcel
    GCSE
    Biology

    Master the fundamentals of how cells divide, differentiate, and communicate. This topic is essential for understanding growth, repair, and the nervous system, and frequently features in high-mark extended response questions.

    7
    Min Read
    3
    Examples
    5
    Questions
    6
    Key Terms
    🎙 Podcast Episode
    Topic 2 – Cells and control
    0:00-0:00

    Study Notes

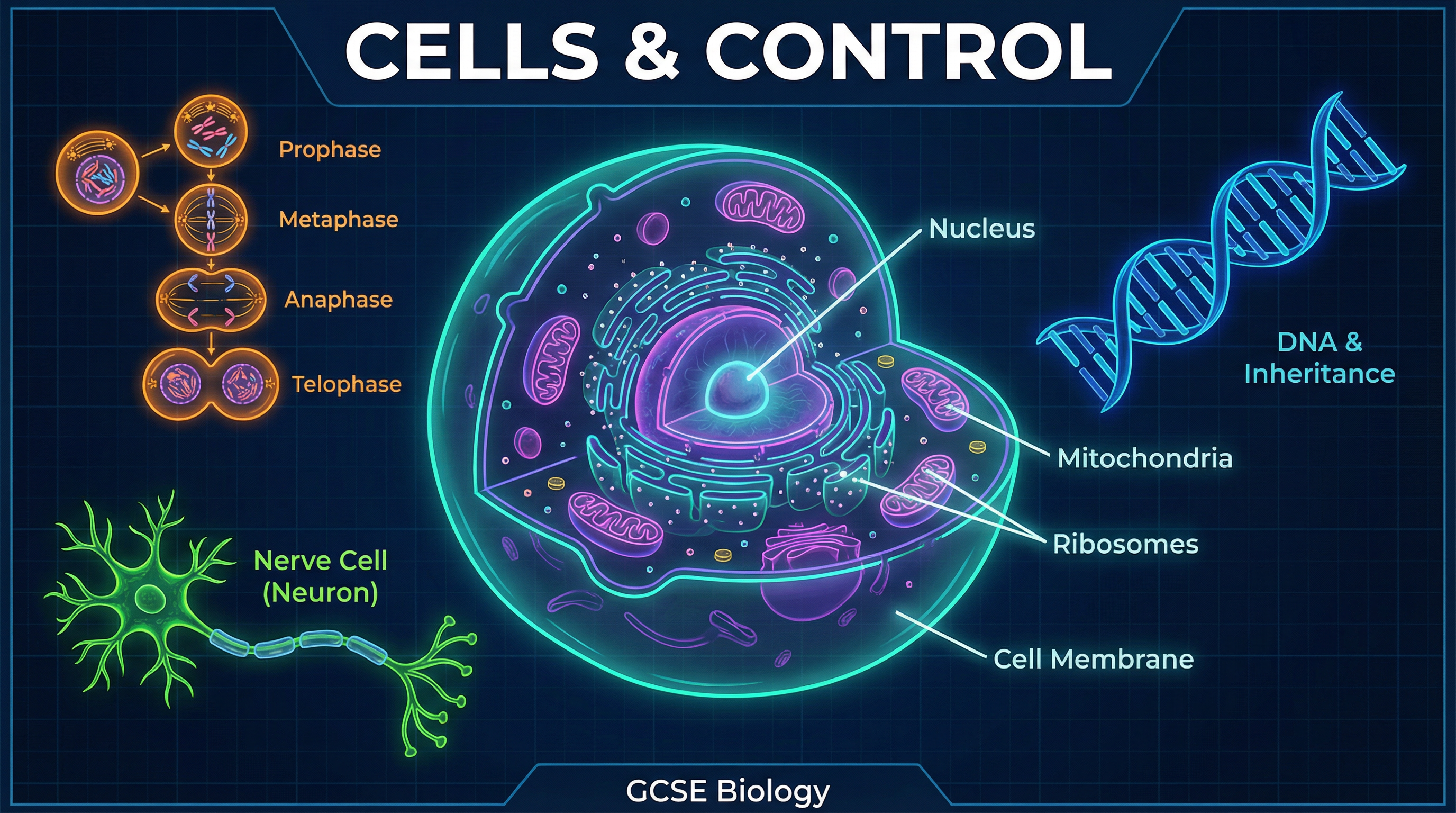

    Cells and Control: Key structures and processes

    Overview

    Welcome to Topic 2: Cells and Control. This topic explores the fascinating mechanisms that allow a single fertilised egg to develop into a complex, multicellular organism, and how that organism coordinates its responses to the environment. Understanding cell division, stem cells, and the nervous system is fundamental to Biology because these processes underpin growth, repair, and survival.

    Examiners frequently test this topic through a mix of short recall questions (like naming the stages of mitosis) and longer, application-based questions (such as evaluating the use of stem cells or explaining the pathway of a reflex arc). Synoptic links are common here, especially connecting cell division to cancer (Topic 1) or linking the nervous system to homeostasis (Topic 7).

    Listen to the podcast episode below for a comprehensive overview of the key concepts and exam techniques.

    Cells and Control Audio Revision

    Key Concepts

    Concept 1: The Cell Cycle and Mitosis

    Every living cell goes through a cycle of growth and division known as the cell cycle. The most significant part of this cycle for your exam is mitosis, which is the process where a single parent cell divides to produce two genetically identical daughter cells. This is crucial for growth, repairing damaged tissues, and asexual reproduction.

    Before mitosis can occur, the cell must go through interphase. During interphase, the cell grows, synthesises new organelles (like mitochondria and ribosomes), and critically, replicates its DNA so that there are two copies of every chromosome.

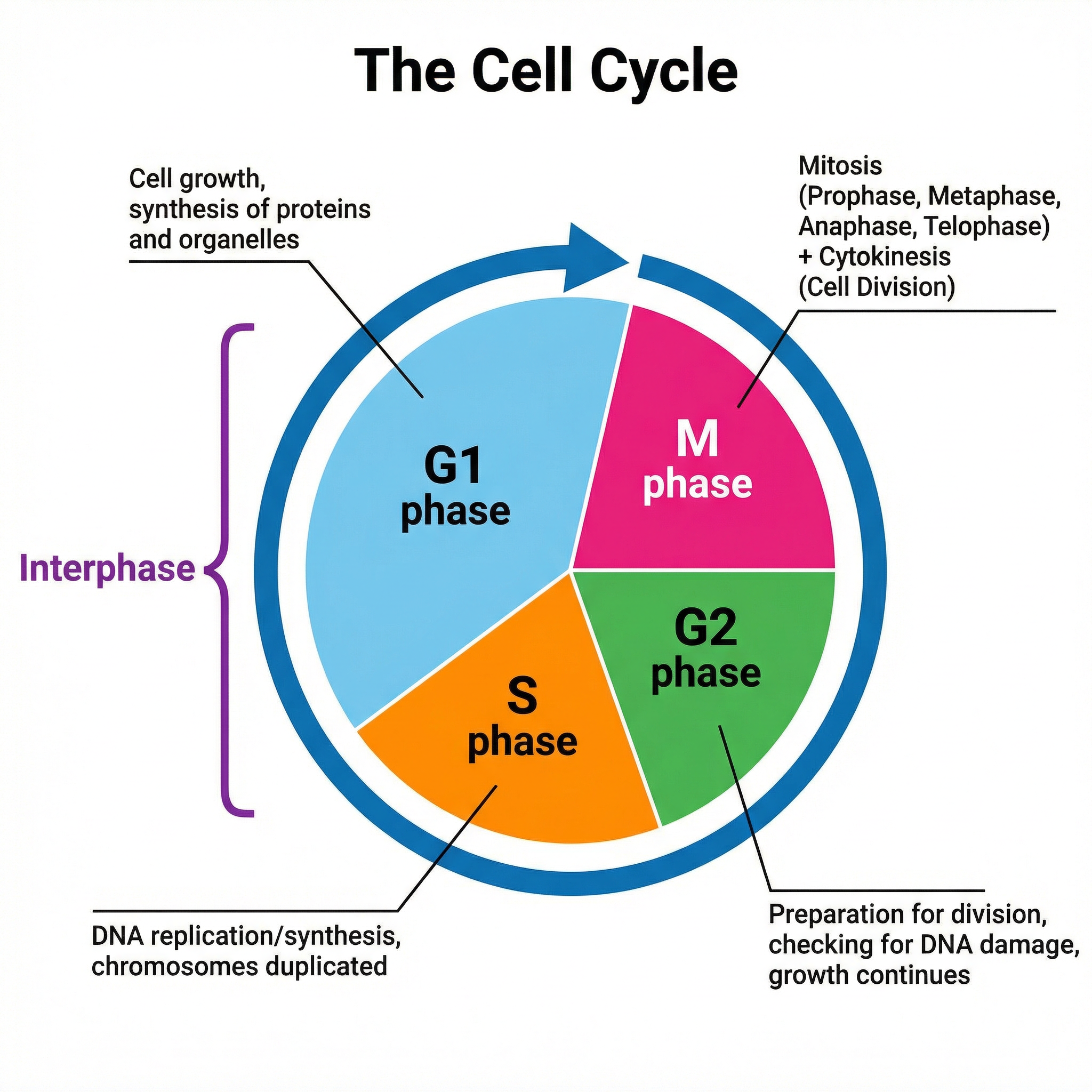

    The Cell Cycle

    Mitosis itself is divided into four main stages, which you must learn in order:

    1. Prophase: The nucleus starts to break down and spindle fibres appear. The chromosomes condense and become visible.
    2. Metaphase: The chromosomes line up along the equator (middle) of the cell.
    3. Anaphase: The spindle fibres contract, pulling the sister chromatids to opposite poles (ends) of the cell.
    4. Telophase: A new nuclear membrane forms around each set of chromosomes.

    Following telophase, the cell membrane and cytoplasm divide to form two separate cells. This final step is called cytokinesis.

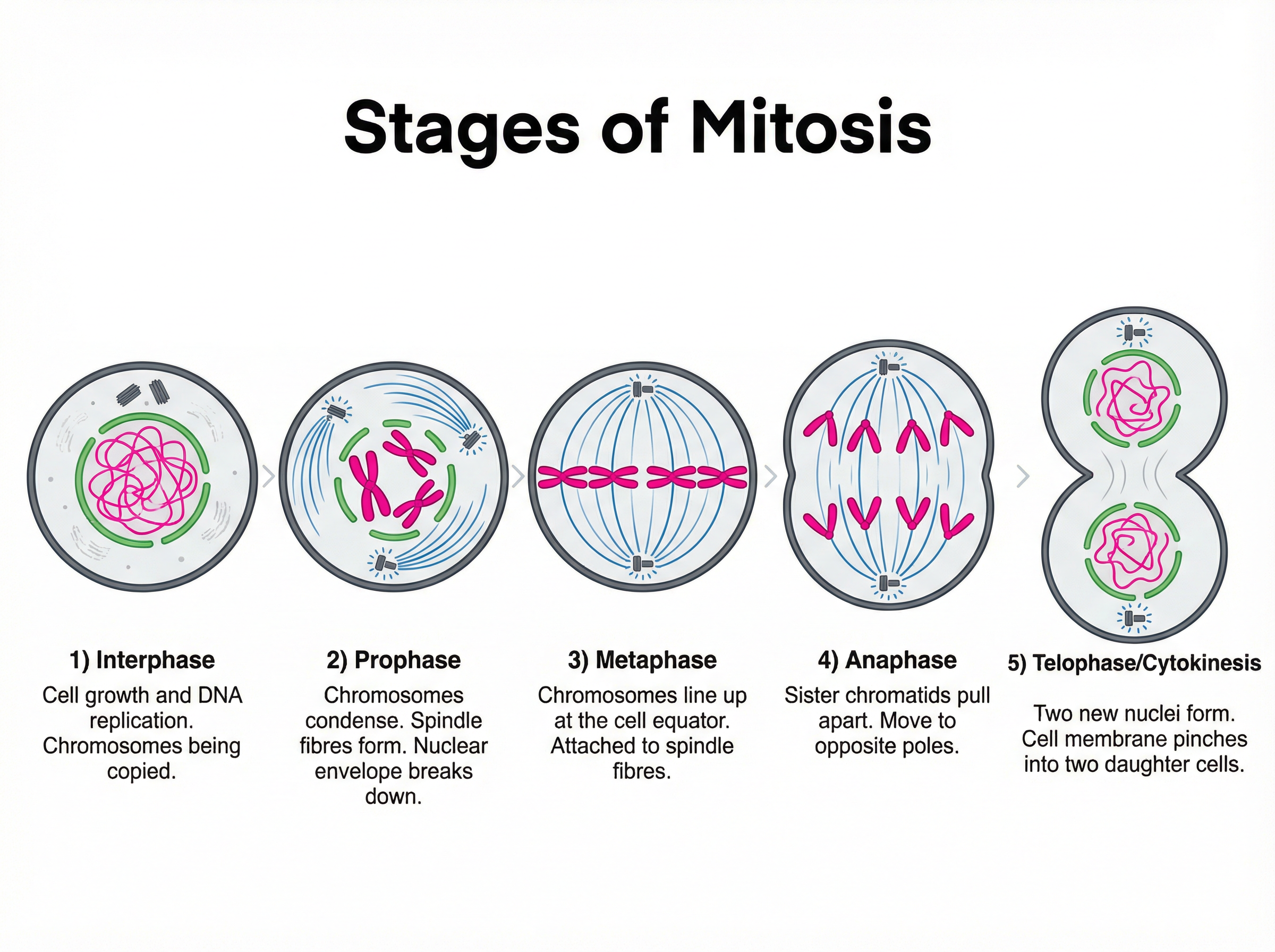

    The Stages of Mitosis

    Why this works: By replicating the DNA first and then carefully separating the copies using spindle fibres, the cell ensures that each new daughter cell receives an exact, complete set of genetic instructions.

    Concept 2: Growth and Differentiation

    Growth in multicellular organisms involves three processes: cell division (mitosis), cell elongation (especially in plants, where cells expand to take up more space), and cell differentiation.

    Differentiation is the process by which an unspecialised cell becomes specialised to perform a specific function. For example, a generic animal cell might differentiate into a red blood cell (losing its nucleus to carry more oxygen) or a muscle cell (developing lots of mitochondria for contraction).

    Concept 3: Stem Cells

    Stem cells are unspecialised cells that retain the ability to divide and differentiate into various cell types. They are essential for development and tissue repair.

    • Embryonic stem cells: Found in early embryos. They are pluripotent, meaning they can differentiate into almost any type of cell in the body.
    • Adult stem cells: Found in specific tissues like bone marrow. They are multipotent, meaning they can only differentiate into a limited range of cell types (e.g., bone marrow stem cells typically only produce blood cells).
    • Meristems (Plants): Found in the growing tips of roots and shoots. Unlike animal cells, plant meristem cells retain the ability to differentiate into any type of plant cell throughout the plant's entire life.

    Exam Focus: You are often asked to evaluate the use of stem cells in medicine. While they offer potential cures for conditions like paralysis or diabetes, the use of embryonic stem cells raises ethical issues regarding the destruction of potential human life, and there are clinical risks such as the cells dividing uncontrollably to form tumours.

    Concept 4: The Nervous System

    The human nervous system allows us to detect changes in our environment (stimuli) and coordinate appropriate responses. It consists of the Central Nervous System (CNS) — the brain and spinal cord — and the peripheral nervous system (the nerves connecting the CNS to the rest of the body).

    Information is transmitted as electrical impulses along specialised cells called neurones.

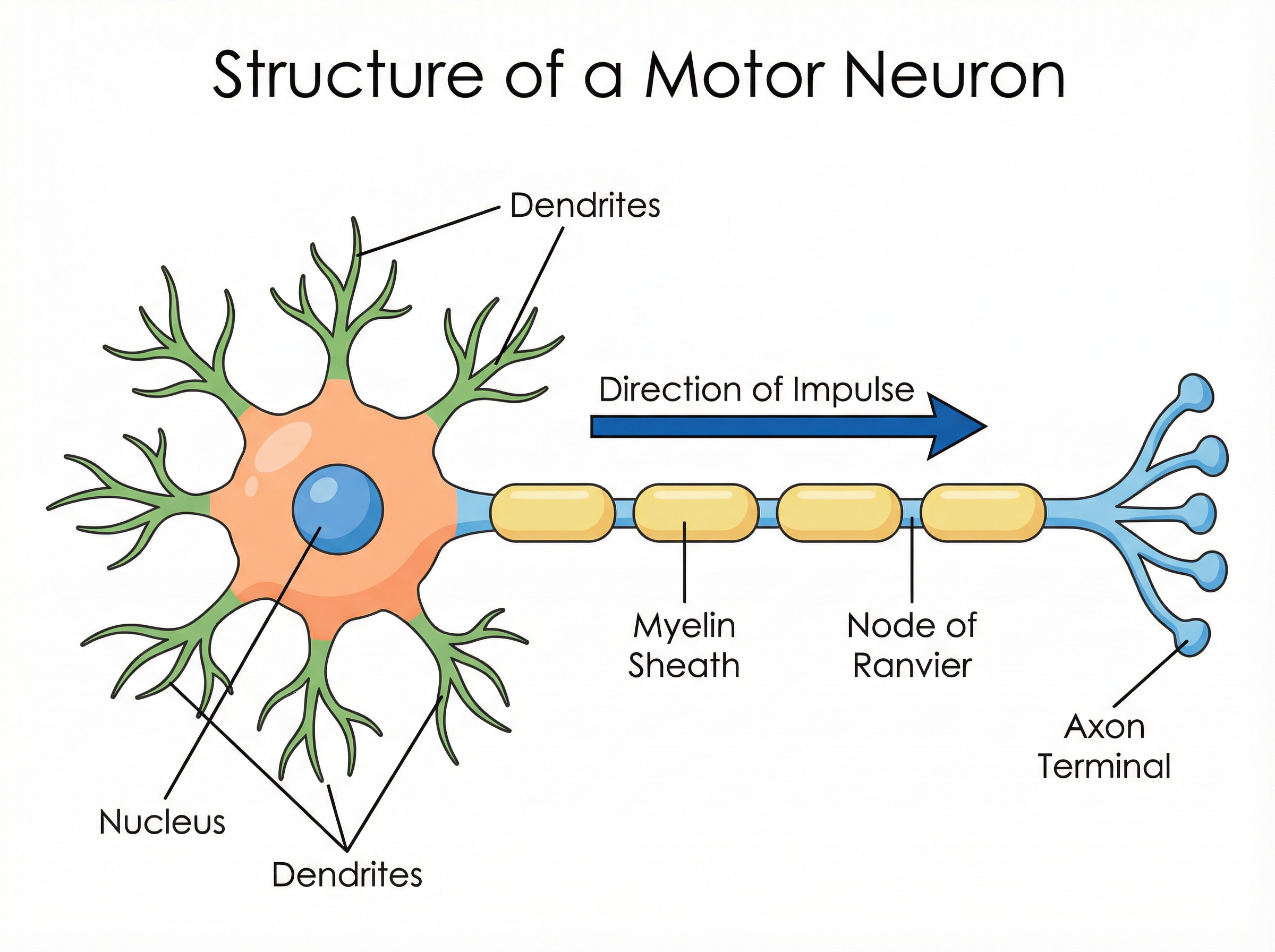

    Structure of a Motor Neuron

    There are three main types of neurones you need to know:

    1. Sensory neurones: Carry electrical impulses from receptors (e.g., in the skin or eyes) to the CNS.
    2. Relay neurones: Found within the CNS, they connect sensory neurones to motor neurones.
    3. Motor neurones: Carry electrical impulses from the CNS to effectors (muscles or glands), which carry out the response.

    Neurones are adapted for their function. They have a long axon to carry impulses over long distances. The axon is often surrounded by a myelin sheath, which acts as an electrical insulator, speeding up the transmission of the impulse.

    Concept 5: Synapses and Reflexes

    Where two neurones meet, there is a tiny gap called a synapse. Electrical impulses cannot jump this gap. Instead, the signal is transmitted chemically.

    When an electrical impulse reaches the end of the presynaptic neurone, it triggers the release of chemical messengers called neurotransmitters from vesicles. These neurotransmitters diffuse across the synaptic cleft and bind to specific receptors on the postsynaptic neurone. This binding triggers a new electrical impulse in the next neurone.

    Reflex arcs are automatic, rapid responses to stimuli that do not involve conscious thought from the brain. They are essential for protecting the body from harm.
    The pathway is: Stimulus → Receptor → Sensory neurone → Relay neurone (in spinal cord) → Motor neurone → Effector → Response.

    Mathematical/Scientific Relationships

    Magnification Equation

    Must memorise
    ext{Magnification} = rac{ ext{Image Size}}{ ext{Actual Size}}

    • Image Size: The size of the object as it appears in the drawing or photograph.
    • Actual Size: The real-life size of the object.
    • Note: Ensure both Image Size and Actual Size are in the same units before calculating. You will frequently need to convert between millimetres (mm) and micrometres (\mu m).
    • 1 ext{ mm} = 1000 ext{ } \mu m

    Percentile Charts

    Examiners often test your ability to interpret growth charts (e.g., baby mass or head circumference) using percentiles. If a baby is on the 75th percentile for mass, it means they are heavier than 75% of babies of the same age, and lighter than 25%.

    Practical Applications

    Understanding the nervous system is directly applied in medical testing, such as testing reflex times to assess neurological health. Stem cell research is currently one of the most heavily funded areas of medical science, with ongoing trials for treating conditions like macular degeneration (blindness) and leukaemia.

    Visual Resources

    3 diagrams and illustrations

    The Stages of Mitosis
    The Stages of Mitosis
    Structure of a Motor Neuron
    Structure of a Motor Neuron
    The Cell Cycle
    The Cell Cycle

    Interactive Diagrams

    2 interactive diagrams to visualise key concepts

    The pathway of a reflex arc showing how a stimulus leads to an automatic response.

    The process of cell differentiation from pluripotent embryonic stem cells.

    Worked Examples

    3 detailed examples with solutions and examiner commentary

    Practice Questions

    Test your understanding — click to reveal model answers

    Q1

    State the function of the myelin sheath on a motor neurone. (1 mark)

    1 marks
    foundation

    Hint: Think about what insulation does to electrical wires.

    Q2

    Describe the role of sensory neurones and motor neurones in the nervous system. (2 marks)

    2 marks
    standard

    Hint: Where do they carry impulses from and to?

    Q3

    Explain why the speed of a reflex action is faster than a voluntary action. (2 marks)

    2 marks
    standard

    Hint: Think about the pathway the impulse takes. What does it bypass?

    Q4

    Compare the potential uses and ethical issues of using embryonic stem cells versus adult stem cells in medicine. (4 marks)

    4 marks
    challenging

    Hint: You need to discuss both types of cells, mentioning what they can be used for and any problems associated with them.

    Q5

    A cell has a diameter of 0.05 mm. It is viewed under a microscope with a magnification of x400. Calculate the image size of the cell in micrometres (µm). (3 marks)

    3 marks
    challenging

    Hint: Calculate the image size in mm first, then convert to micrometres.
