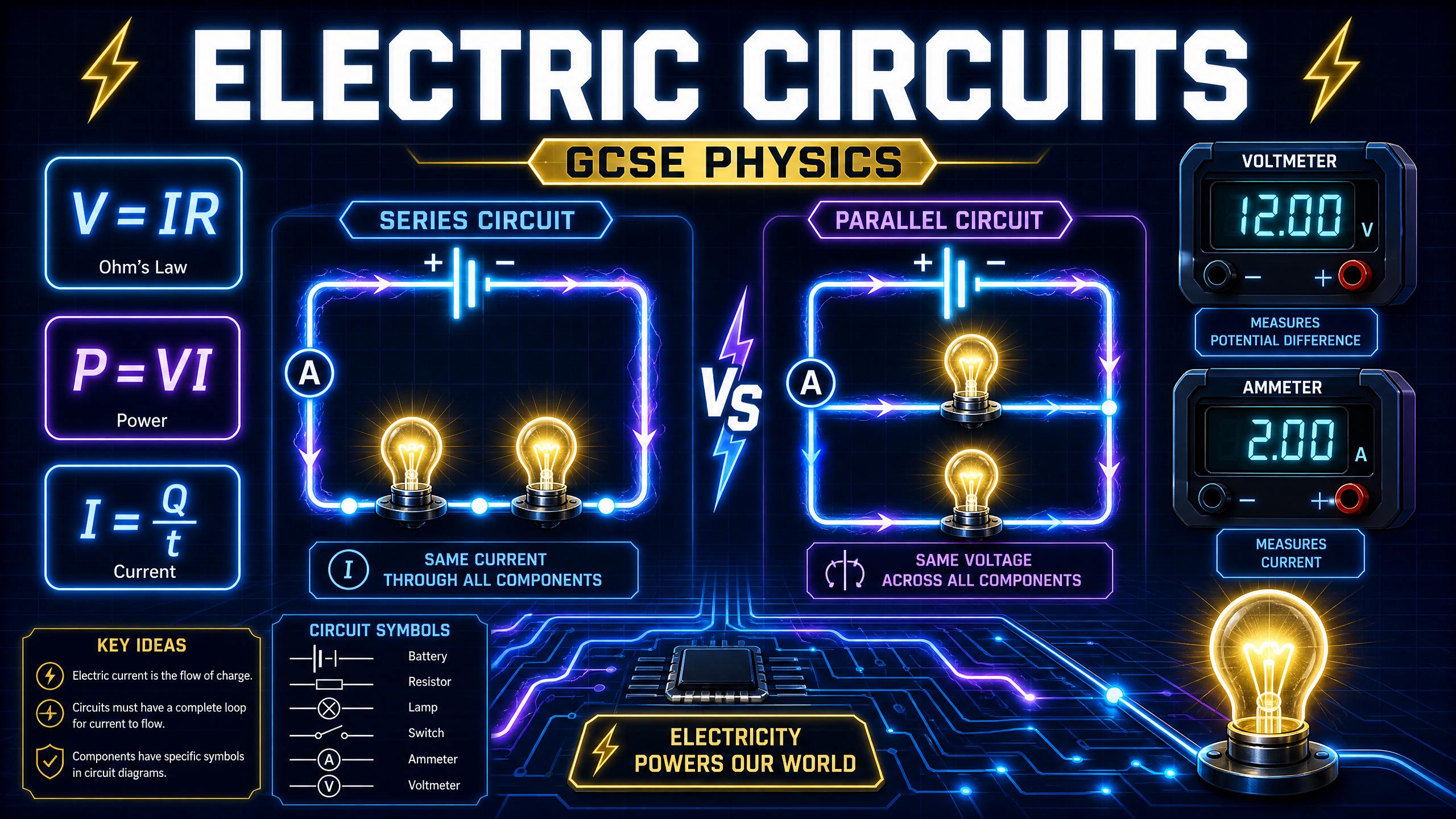

Electric Circuits

Overview

Electric circuits form the backbone of modern technology, powering everything from your smartphone to national power grids. In your GCSE Physics exam, this topic is heavily assessed across multiple question formats, testing your ability to recall formulas, interpret graphs, and apply physical models to new situations. Understanding circuits requires you to master three fundamental quantities—current, potential difference, and resistance—and understand how they interact in both series and parallel configurations.

Examiners will expect you to seamlessly move between qualitative descriptions (explaining why a filament bulb's resistance increases) and quantitative analysis (calculating the total resistance of a complex circuit). This topic connects strongly to energy transfers, domestic electricity, and electromagnetism. By mastering the core principles of charge conservation and energy conservation, you will be well-equipped to tackle even the most challenging synoptic questions.

Listen to the Revision Podcast

A 10-minute audio guide covering core concepts, common exam mistakes, and a quick-fire recall quiz. Perfect for revision on the go.

Key Concepts

Concept 1: Current, Potential Difference, and Resistance

The foundation of circuit analysis rests on three interconnected quantities.

Electric Current (I) is the rate of flow of electric charge. It is measured in Amperes (A). Think of it as the volume of water flowing through a pipe per second. In a solid metallic conductor, this charge is carried by delocalised electrons.
Important Examiner Note: Always distinguish between conventional current (which flows from positive to negative) and electron flow (which flows from negative to positive). Circuit diagrams always use conventional current.

Potential Difference (V), often called voltage, is the work done (energy transferred) per unit charge moved between two points in a circuit. It is measured in Volts (V). A 1 Volt potential difference means 1 Joule of energy is transferred per Coulomb of charge. Think of it as the "push" or "pressure" driving the current.

Resistance (R) is the opposition to the flow of current, measured in Ohms (\Omega). It arises from collisions between the flowing electrons and the positive ions in the metal lattice.

Example: If a battery provides a potential difference of 12 V across a resistor of 4 \Omega, the current flowing through it will be I = rac{V}{R} = rac{12}{4} = 3 ext{ A}.

Concept 2: Ohm's Law and I-V Characteristics

Ohm's Law states that the current through an ohmic conductor (at a constant temperature) is directly proportional to the potential difference across it. This means the resistance remains constant.

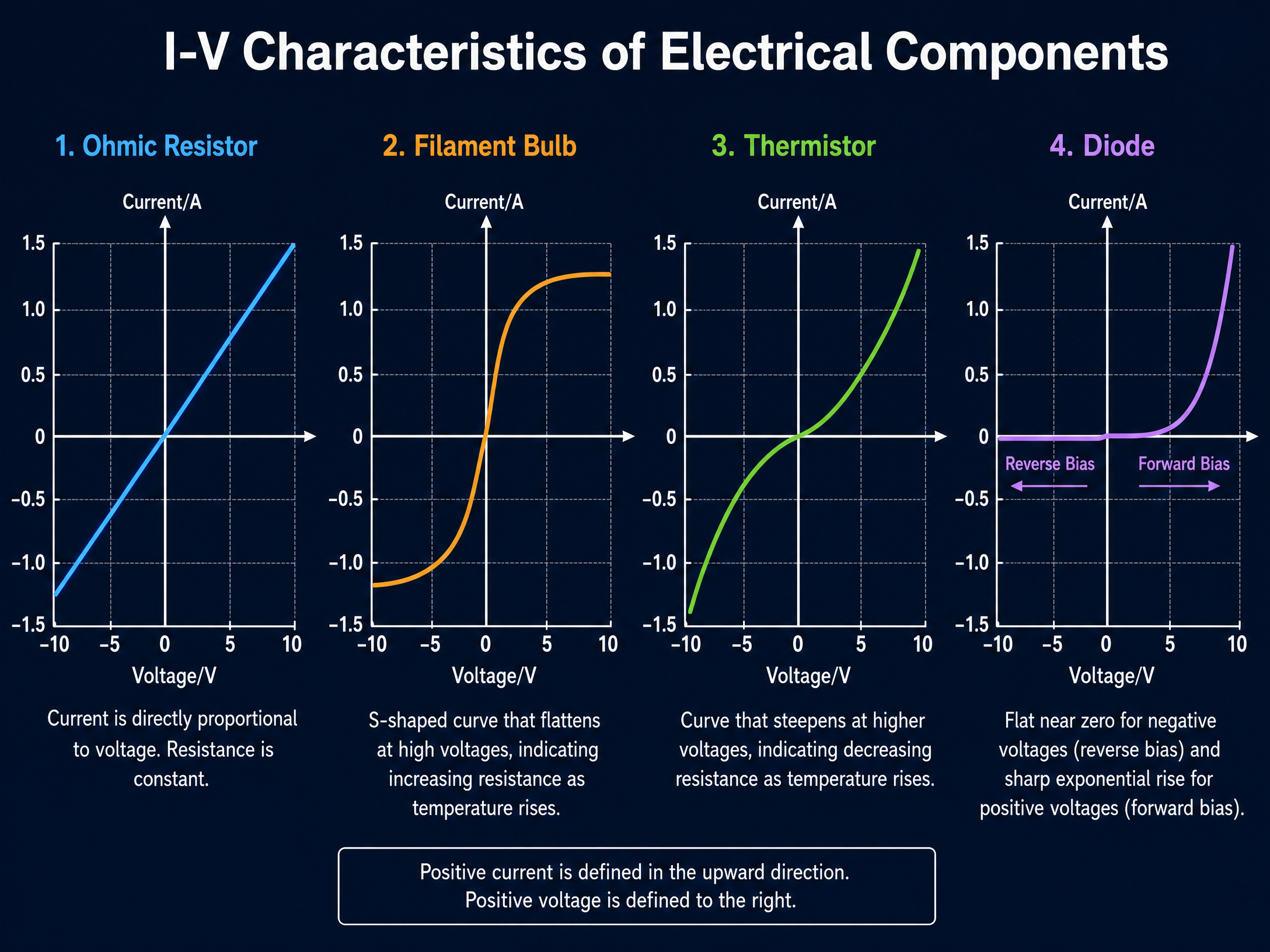

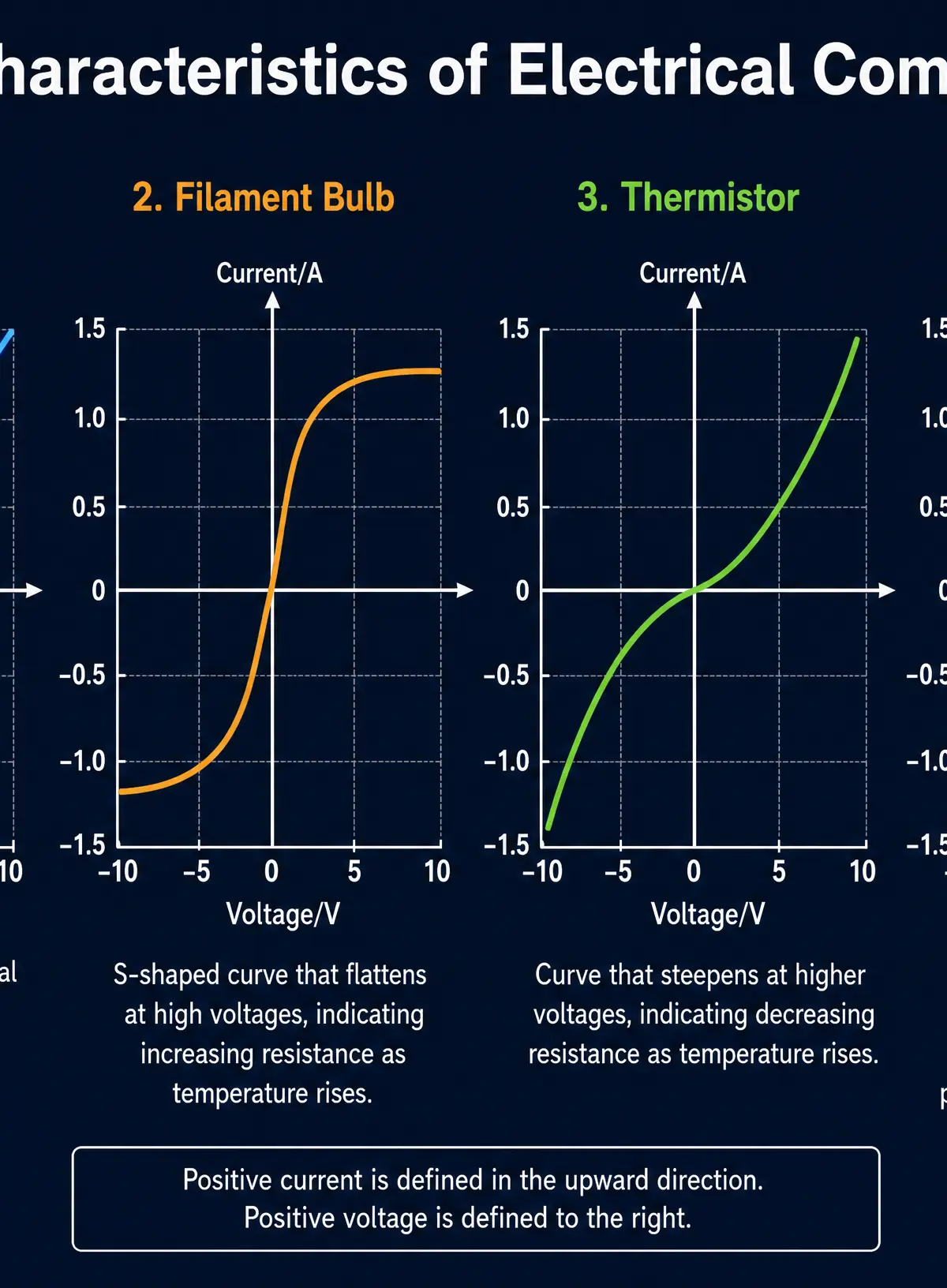

However, not all components obey Ohm's Law. Examiners frequently test your ability to interpret Current-Voltage (I-V) graphs for non-ohmic components.

• Ohmic Resistor: A straight line through the origin. Resistance is constant.
• Filament Bulb: An S-shaped curve. As the current increases, the temperature of the filament increases. This causes the metal ions to vibrate more, increasing the collision rate with electrons, which increases the resistance. The curve flattens out at high voltages.
• Thermistor: A component whose resistance decreases as temperature increases. The curve steepens at higher voltages.
• Diode: Allows current to flow in one direction only. It has very high resistance in the reverse direction (reverse bias) and low resistance in the forward direction (forward bias) once a threshold voltage (usually ~0.7V) is reached.

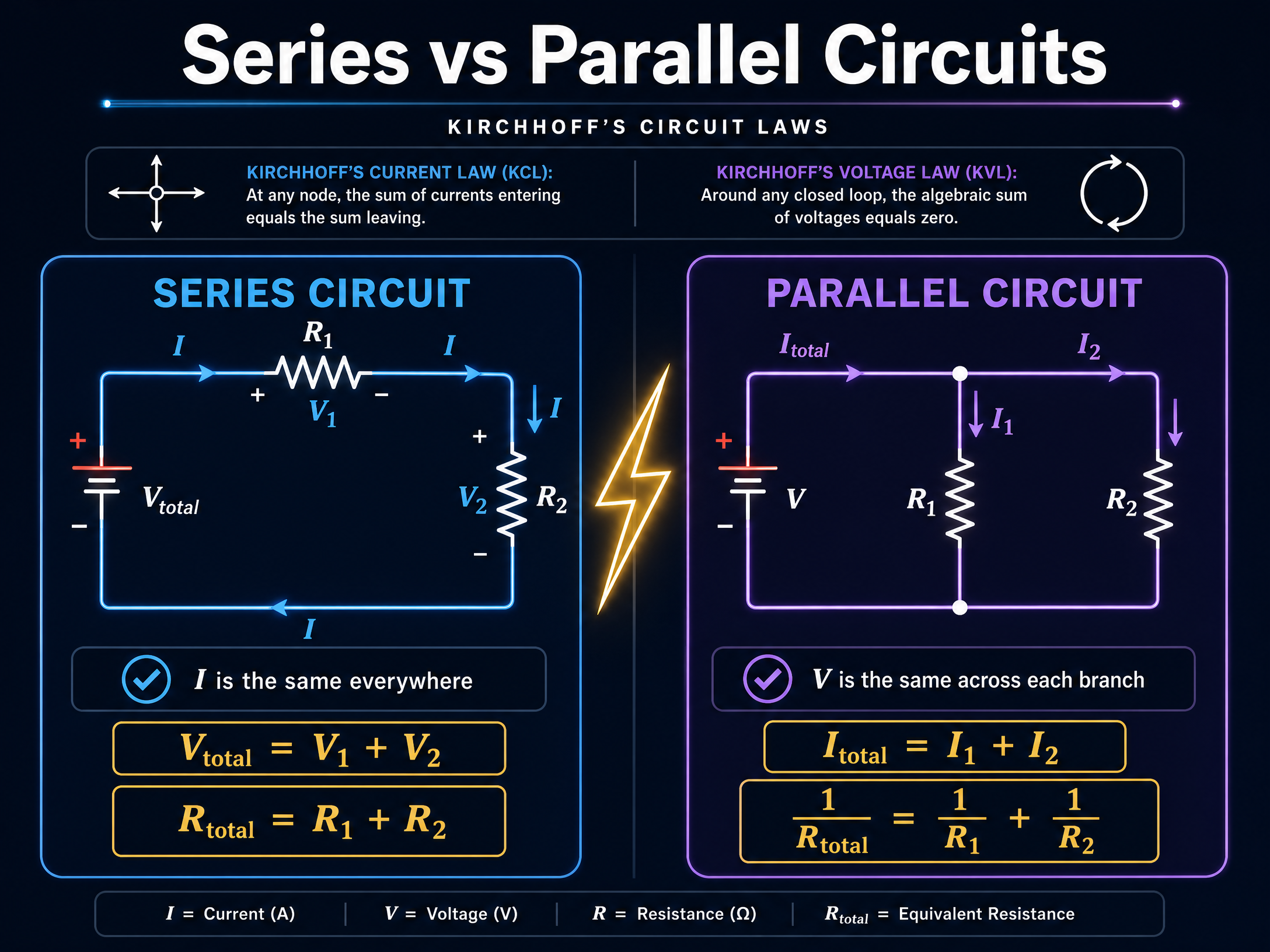

Concept 3: Series and Parallel Circuits

Understanding how components behave when connected in series versus parallel is crucial for circuit calculations.

Series Circuits:

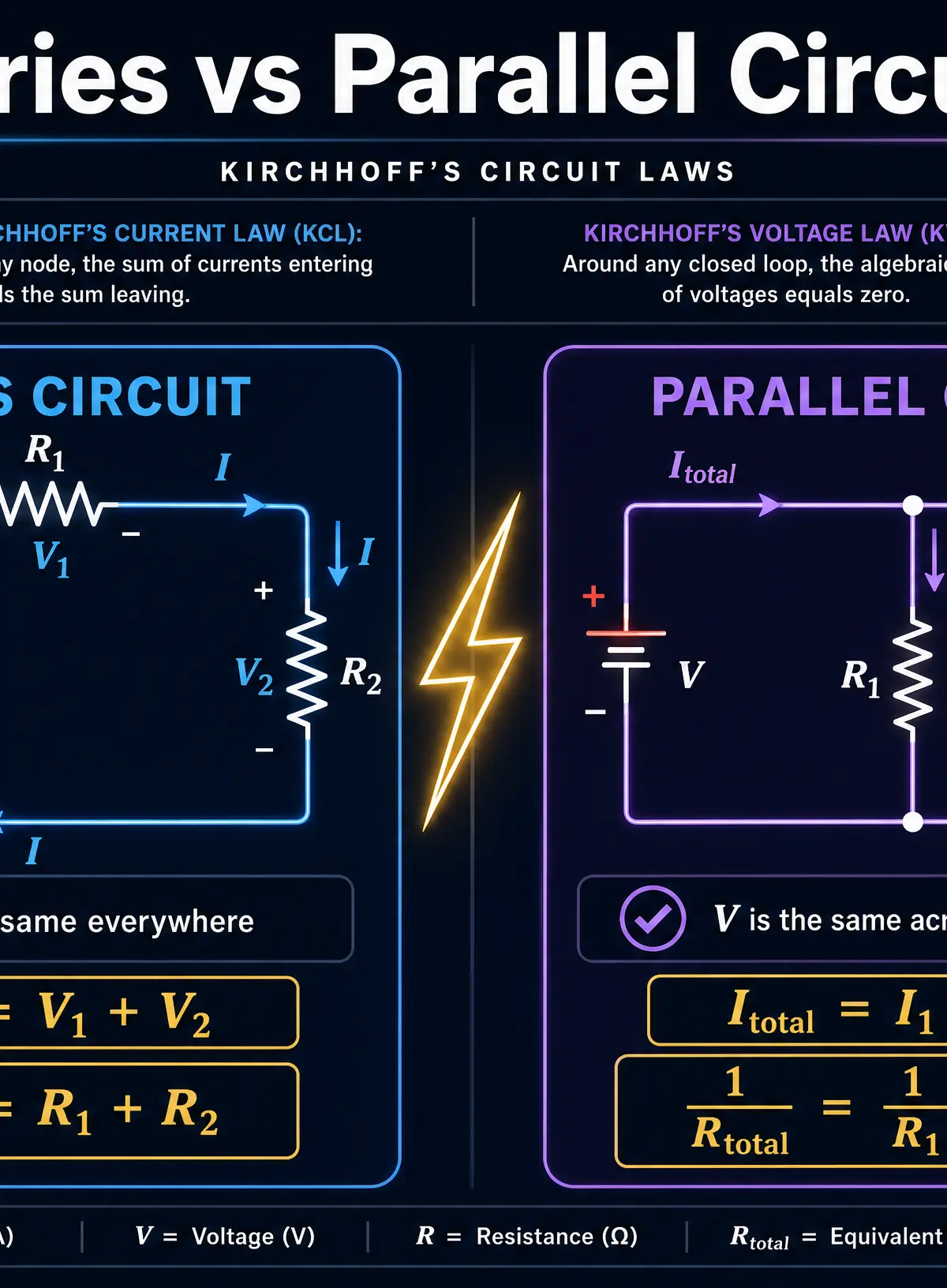

• Current: The same everywhere (I_1 = I_2 = I_3). There is only one path for the charge to flow.
• Potential Difference: Shared between components (V_{total} = V_1 + V_2 + ...).
• Resistance: The total resistance is the sum of individual resistances (R_{total} = R_1 + R_2 + ...).

Parallel Circuits:

• Current: Splits down different branches (I_{total} = I_1 + I_2 + ...). This demonstrates the conservation of charge.
• Potential Difference: The same across all branches (V_1 = V_2 = V_3).
• Resistance: Adding resistors in parallel decreases the total resistance. The formula is rac{1}{R_{total}} = rac{1}{R_1} + rac{1}{R_2} + ...

Concept 4: Electrical Power and Energy

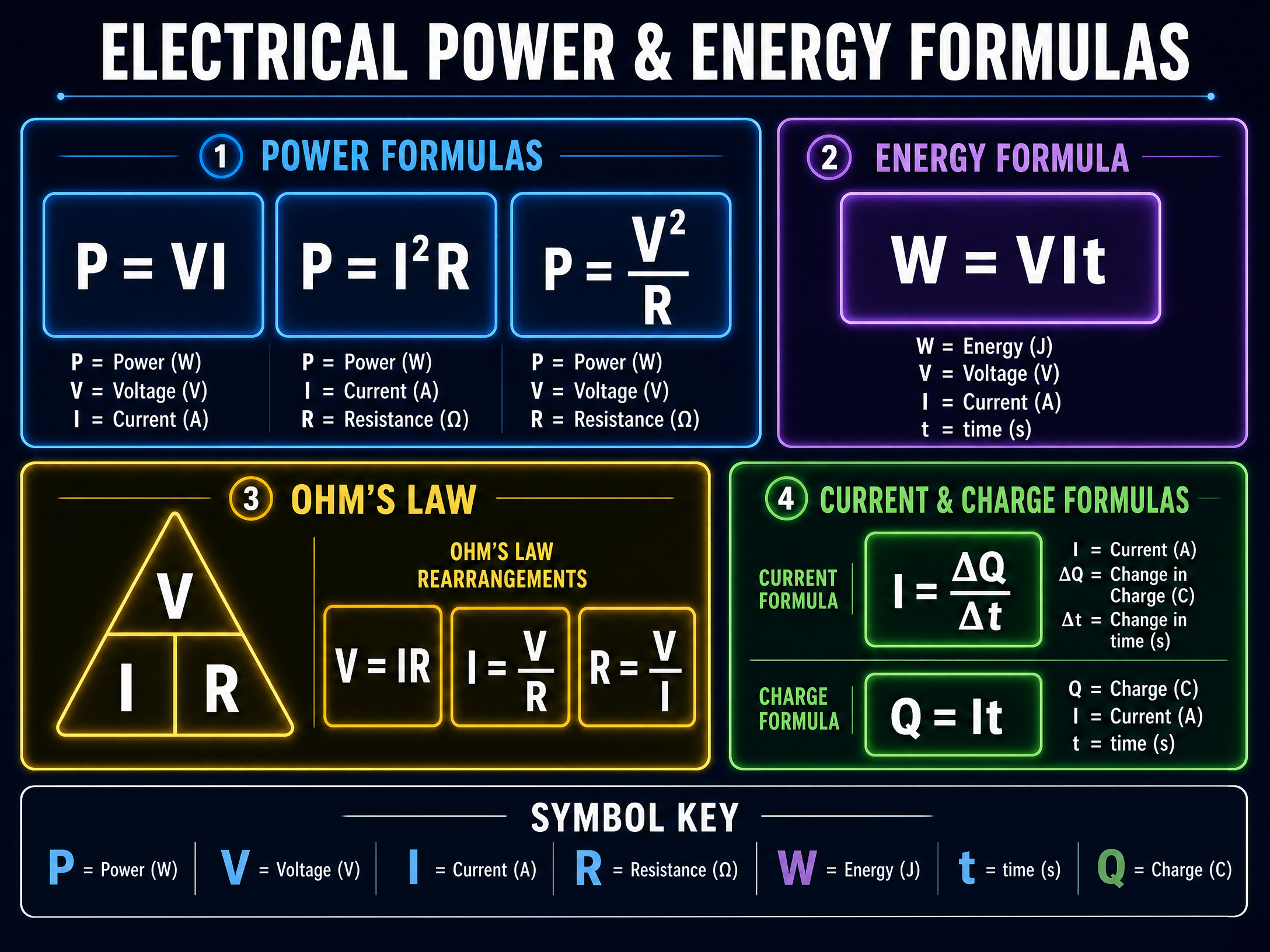

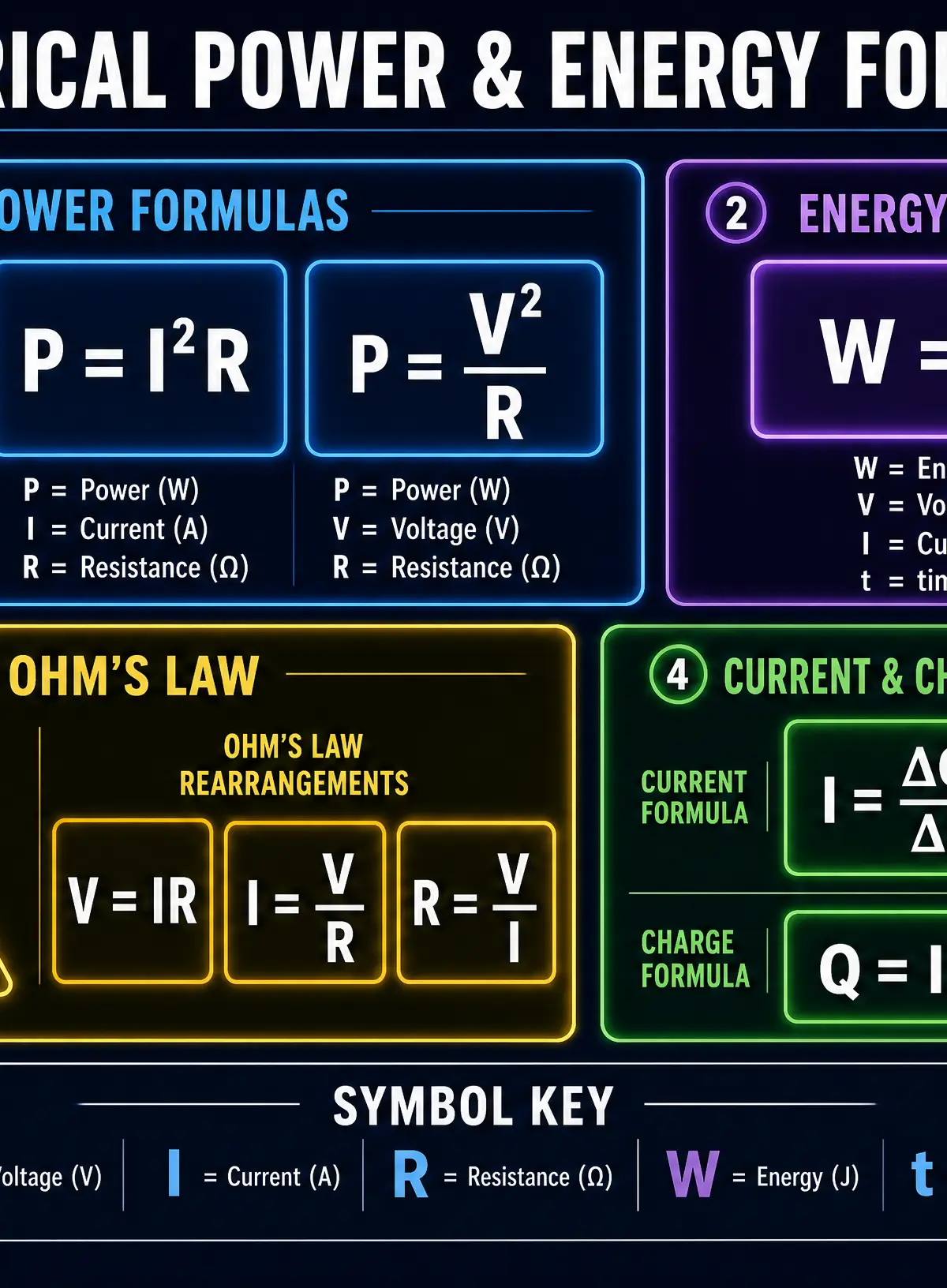

Power is the rate at which energy is transferred. In electrical circuits, power can be calculated using several formulas depending on the given variables.

Concept 5: The Potential Divider

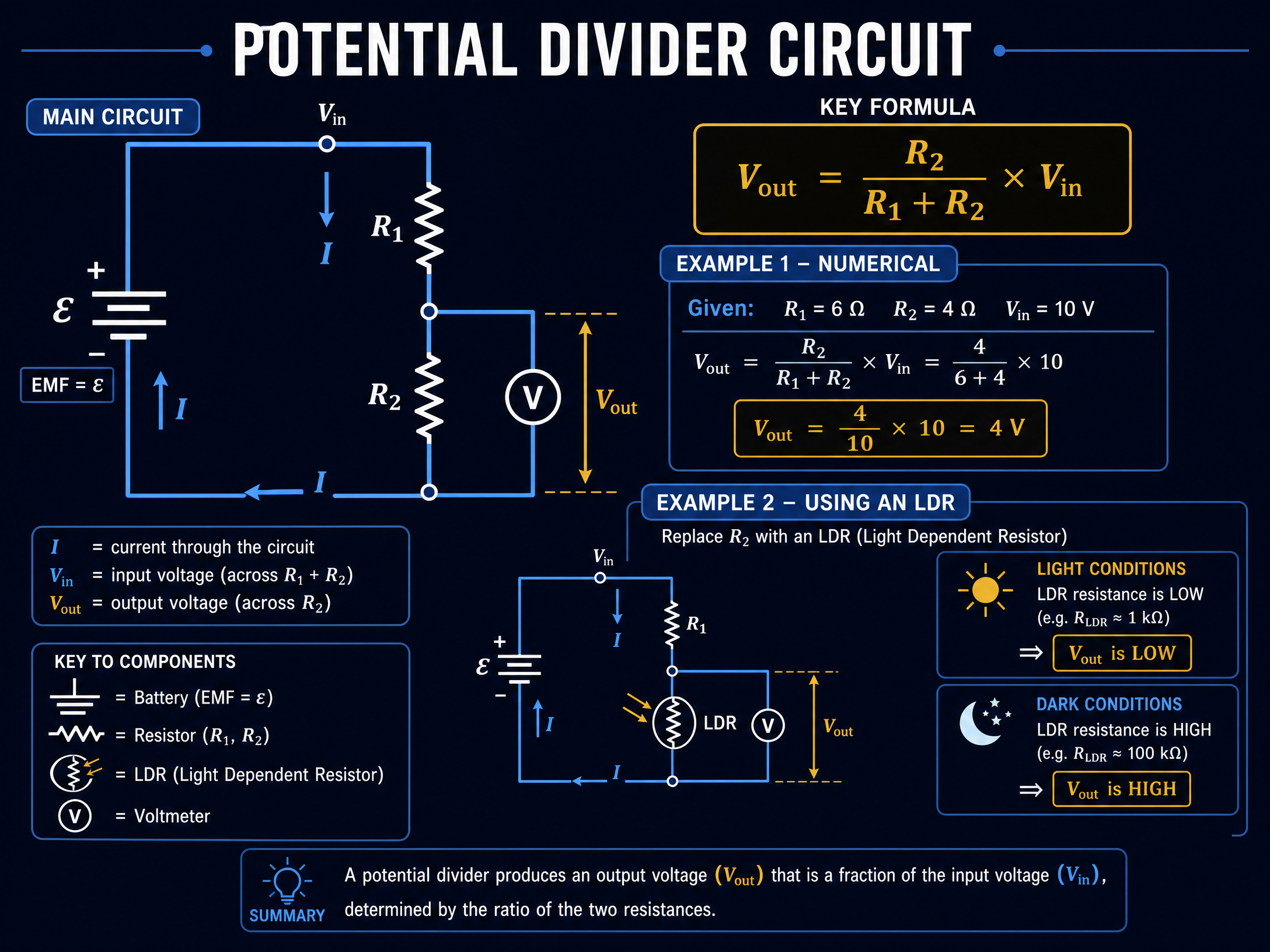

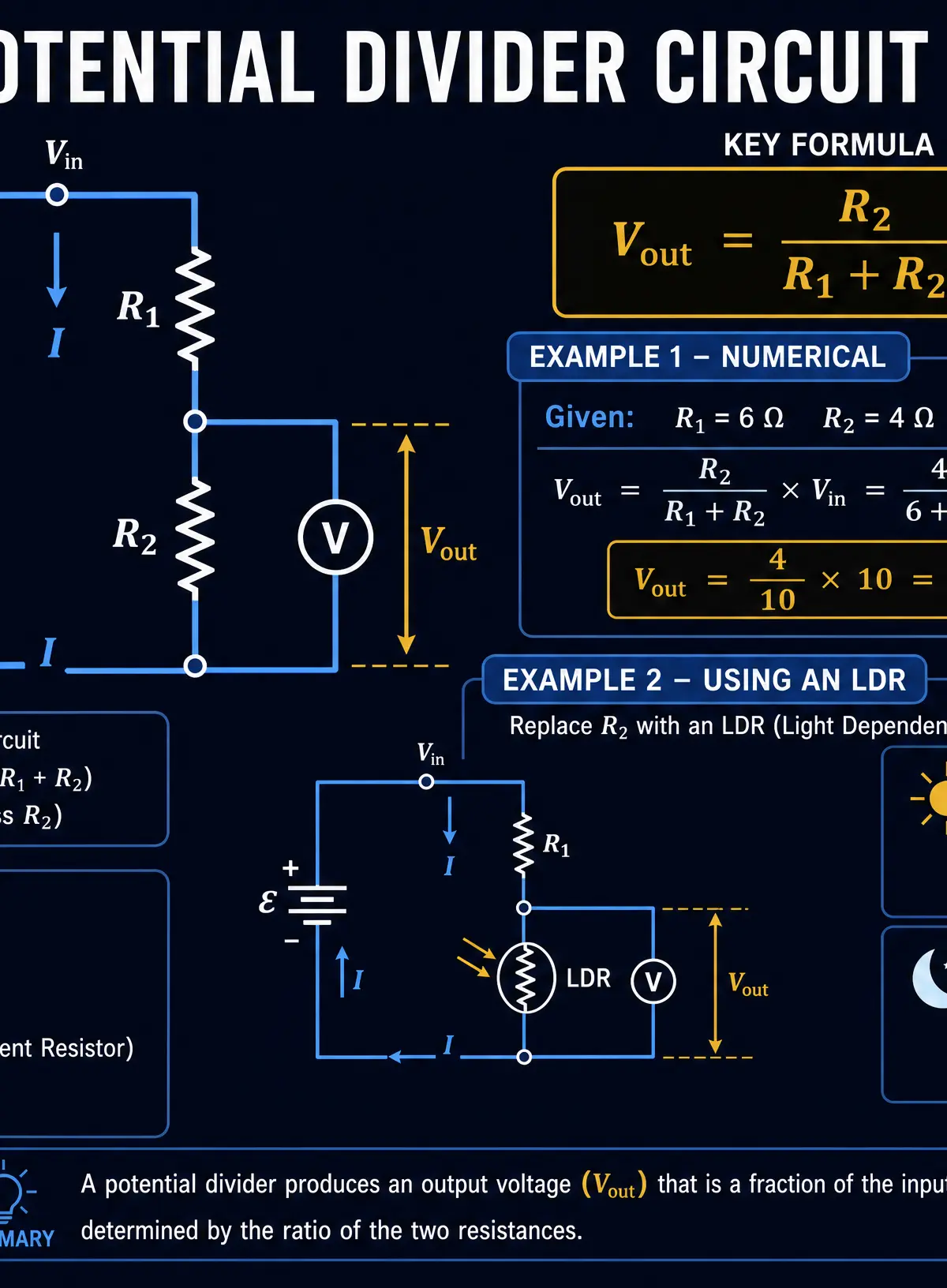

A potential divider is a simple circuit that uses two resistors in series to supply a specific output voltage that is a fraction of the input voltage.

They are often used with sensory resistors like Light Dependent Resistors (LDRs) or thermistors to create circuits that respond to environmental changes (e.g., automatic street lights or thermostats).

Mathematical/Scientific Relationships

Examiners expect you to recall and apply the following relationships. Always state the formula before substituting values.

Given on Formula Sheet (usually):

• Total Resistance in Parallel: rac{1}{R_t} = rac{1}{R_1} + rac{1}{R_2} (Higher Tier)
• Resistivity: $R = rac{
  ho l}{A}$ (Higher Tier)

Must Memorise:

• Current, Charge, Time: I = rac{\Delta Q}{\Delta t} or Q = It
  • I = Current (A), Q = Charge (C), t = Time (s)
• Potential Difference, Work, Charge: V = rac{W}{Q} or E = QV
  • V = Potential Difference (V), W or E = Energy/Work (J), Q = Charge (C)
• Ohm's Law: V = IR
  • V = Potential Difference (V), I = Current (A), R = Resistance (\Omega)
• Electrical Power: P = VI, P = I^2R, P = rac{V^2}{R}
  • P = Power (W), V = Potential Difference (V), I = Current (A), R = Resistance (\Omega)
• Energy Transferred: W = VIt
  • W = Energy (J), V = Potential Difference (V), I = Current (A), t = Time (s)

Practical Applications & Required Practicals

Required Practical: Investigating Resistance

Aim: To investigate how the length of a wire affects its resistance, and to investigate resistors in series and parallel.
Apparatus: Power supply, ammeter, voltmeter, resistance wire on a metre ruler, crocodile clips, connecting leads.
Method (Length of wire):

1. Set up a series circuit with the power supply, ammeter, and the resistance wire.
2. Connect the voltmeter in parallel across the section of wire being tested.
3. Attach the first crocodile clip at 0 cm on the ruler.
4. Attach the second crocodile clip at 10 cm. Record the current and potential difference.
5. Calculate resistance using R = V/I.
6. Move the second clip in 10 cm intervals up to 100 cm, recording readings and calculating resistance at each length.
   Expected Results: A graph of resistance against length should be a straight line through the origin, showing they are directly proportional.
   Common Errors Tested:

• Zero error: If the graph doesn't go exactly through the origin, it's often because the crocodile clip wasn't exactly at zero, or there's resistance in the clip itself.
• Heating effect: If the current is left on too long, the wire heats up, increasing its resistance. The switch should be opened between readings to let the wire cool.

Real-World Applications

• Parallel Wiring in Homes: Houses are wired in parallel so that if one bulb breaks, the others stay on, and each appliance receives the full 230V mains potential difference.
• Thermistors in Ovens/Fridges: Used in temperature control circuits. As the oven heats up, the thermistor's resistance drops, which can trigger a circuit to turn off the heating element.
• LDRs in Streetlights: As it gets dark, the LDR's resistance increases. In a potential divider circuit, this can increase the voltage across a specific component to trigger the lights to turn on.
