Topic 3: Computers

Overview

Welcome to Topic 3: Computers. This topic is the bedrock of Computer Science. Before you can understand how to write complex algorithms or network systems together, you must first understand the machine itself. What actually is a computer? How does it follow instructions? How does it store data?

In this section, we will explore the von Neumann architecture, diving deep into the Central Processing Unit (CPU) and its components. We will trace the journey of an instruction through the fetch-decode-execute cycle, and examine how data travels along the bus system. We'll also compare different types of secondary storage, and finally, look at the essential software that makes the hardware usable: operating systems, utilities, and programming translators.

This topic is heavily assessed in the exam. You can expect a mix of short recall questions (e.g., 'State the purpose of the MAR') and longer, 6-mark extended response questions requiring you to explain processes (like the FDE cycle) or evaluate storage choices for a given scenario.

Key Concepts

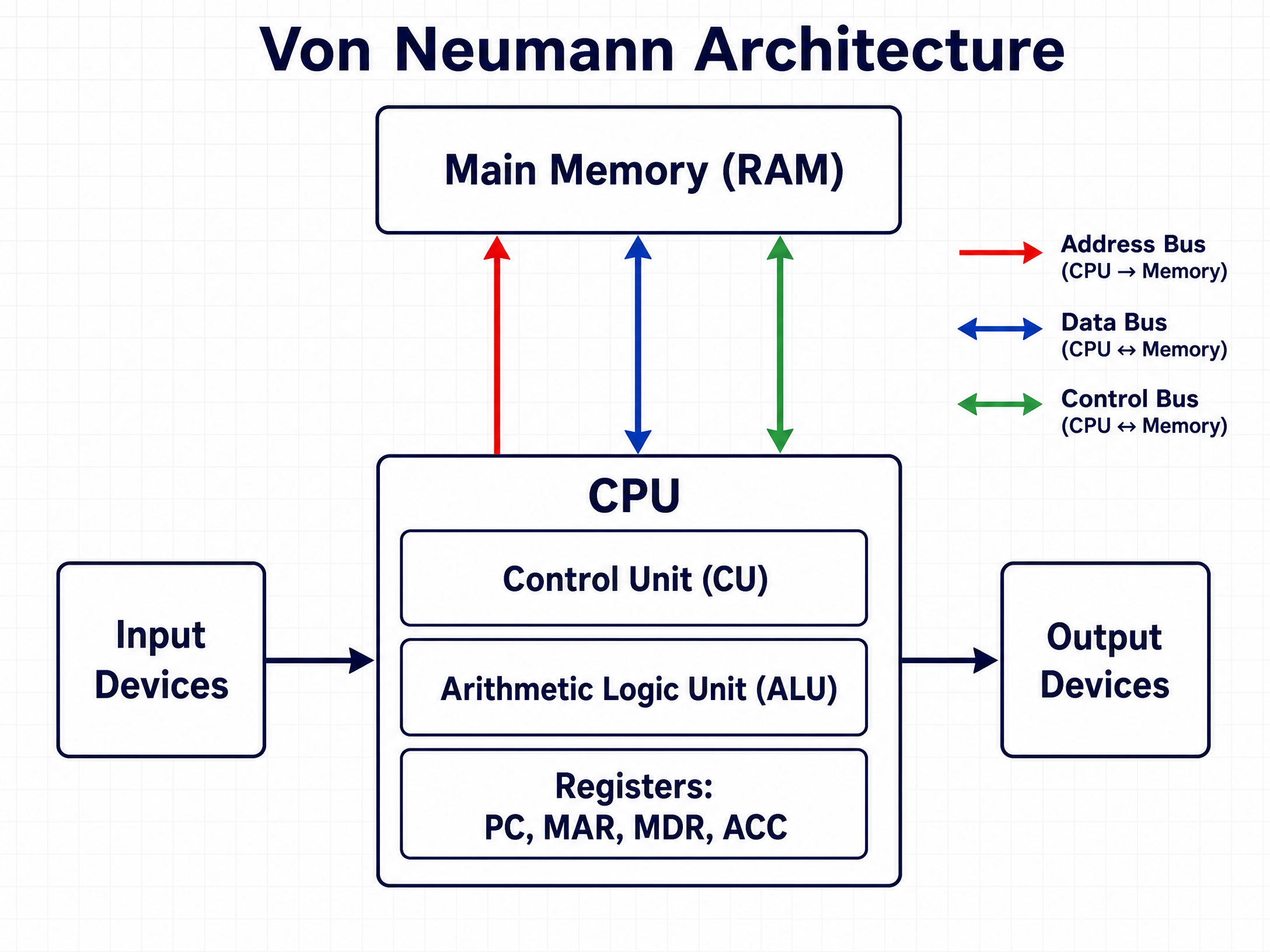

Concept 1: The Von Neumann Architecture

In the 1940s, mathematician John von Neumann proposed a design that changed computing forever: the stored program concept.

Before this, computers had to be physically rewired to perform different tasks. Von Neumann's insight was that both the program instructions and the data they use should be stored together in the same memory (RAM). This allows a computer to be easily reprogrammed simply by loading different instructions into memory.

The architecture consists of four main elements:

1. Central Processing Unit (CPU): The brain of the computer, responsible for executing instructions.
2. Main Memory (RAM): Where instructions and data are stored while in use.
3. Input Devices: Allow data to be entered into the system (e.g., keyboard).
4. Output Devices: Allow the system to present results (e.g., monitor).

Concept 2: Inside the CPU

The CPU is a complex integrated circuit containing several vital components:

• Control Unit (CU): The manager. It coordinates the actions of the computer, fetches instructions from memory, decodes them, and manages the execution by sending control signals to other components.
• Arithmetic Logic Unit (ALU): The worker. It performs all mathematical calculations (addition, subtraction) and logical operations (comparing values, AND/OR/NOT gates).
• Registers: Ultra-fast, tiny storage locations inside the CPU itself. The key registers are:
  • Program Counter (PC): Holds the memory address of the next instruction to be fetched.
  • Memory Address Register (MAR): Holds the address of the memory location currently being read from or written to.
  • Memory Data Register (MDR): Holds the actual data or instruction just fetched from memory, or waiting to be written to memory.
  • Accumulator (ACC): Holds the result of the most recent calculation performed by the ALU.

Concept 3: The Bus System

Components communicate via buses—sets of parallel wires carrying electrical signals.

• Address Bus: Carries the memory address from the CPU to RAM. It is unidirectional (one-way).
• Data Bus: Carries the actual instructions and data between the CPU and memory. It is bidirectional (two-way).
• Control Bus: Carries control signals (e.g., read/write commands, clock signals) around the system. It is bidirectional.

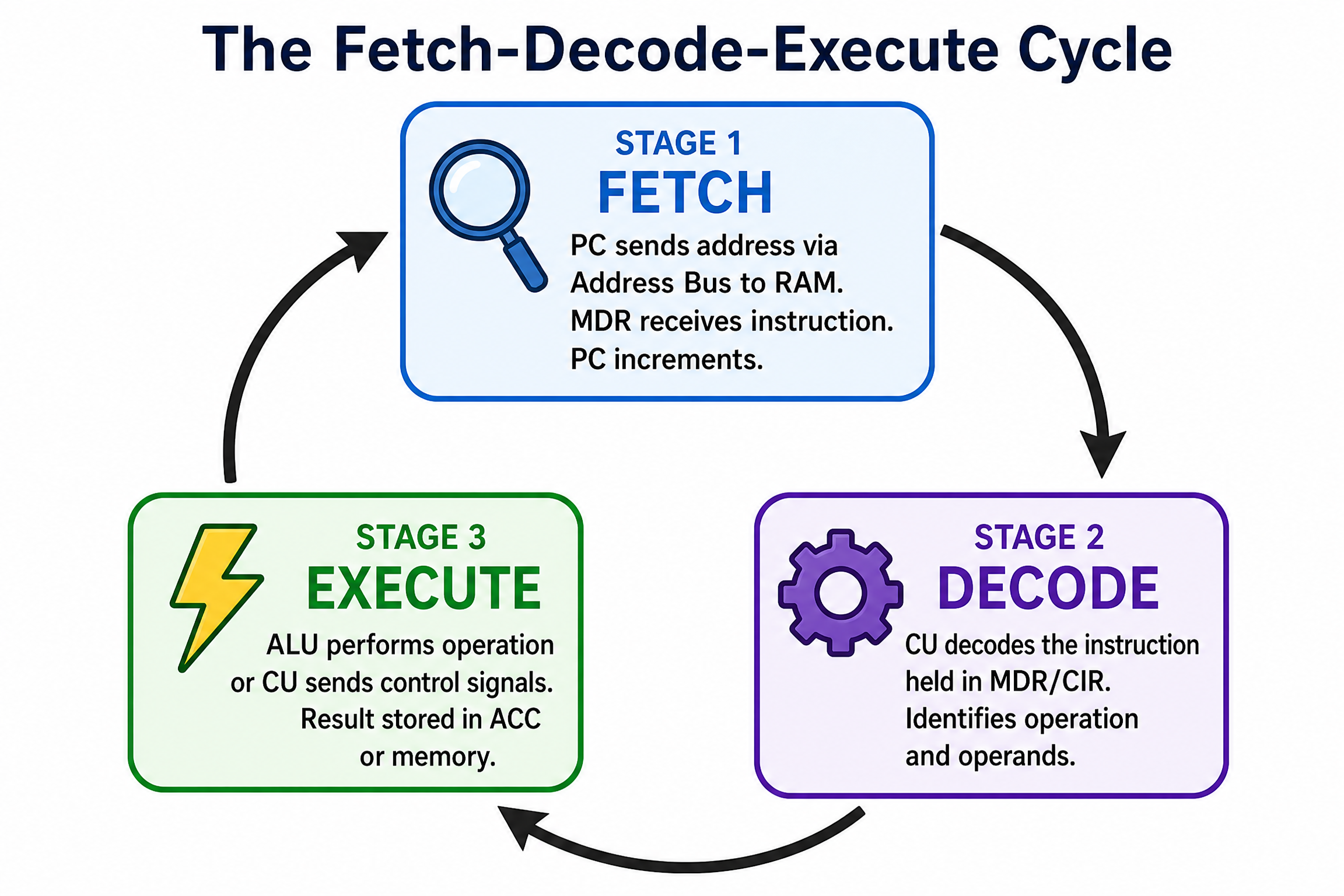

Concept 4: The Fetch-Decode-Execute (FDE) Cycle

This is the fundamental sequence of steps the CPU performs continuously to run a program.

1. Fetch:
   • The address in the Program Counter (PC) is copied to the MAR.
   • The address is sent along the address bus to RAM.
   • The instruction at that address is sent back along the data bus and stored in the MDR.
   • The PC is incremented to point to the next instruction.
2. Decode:
   • The Control Unit (CU) examines the instruction in the MDR and works out what operation to perform.
3. Execute:
   • The instruction is carried out. This might involve the ALU performing a calculation, or data being read from/written to memory.

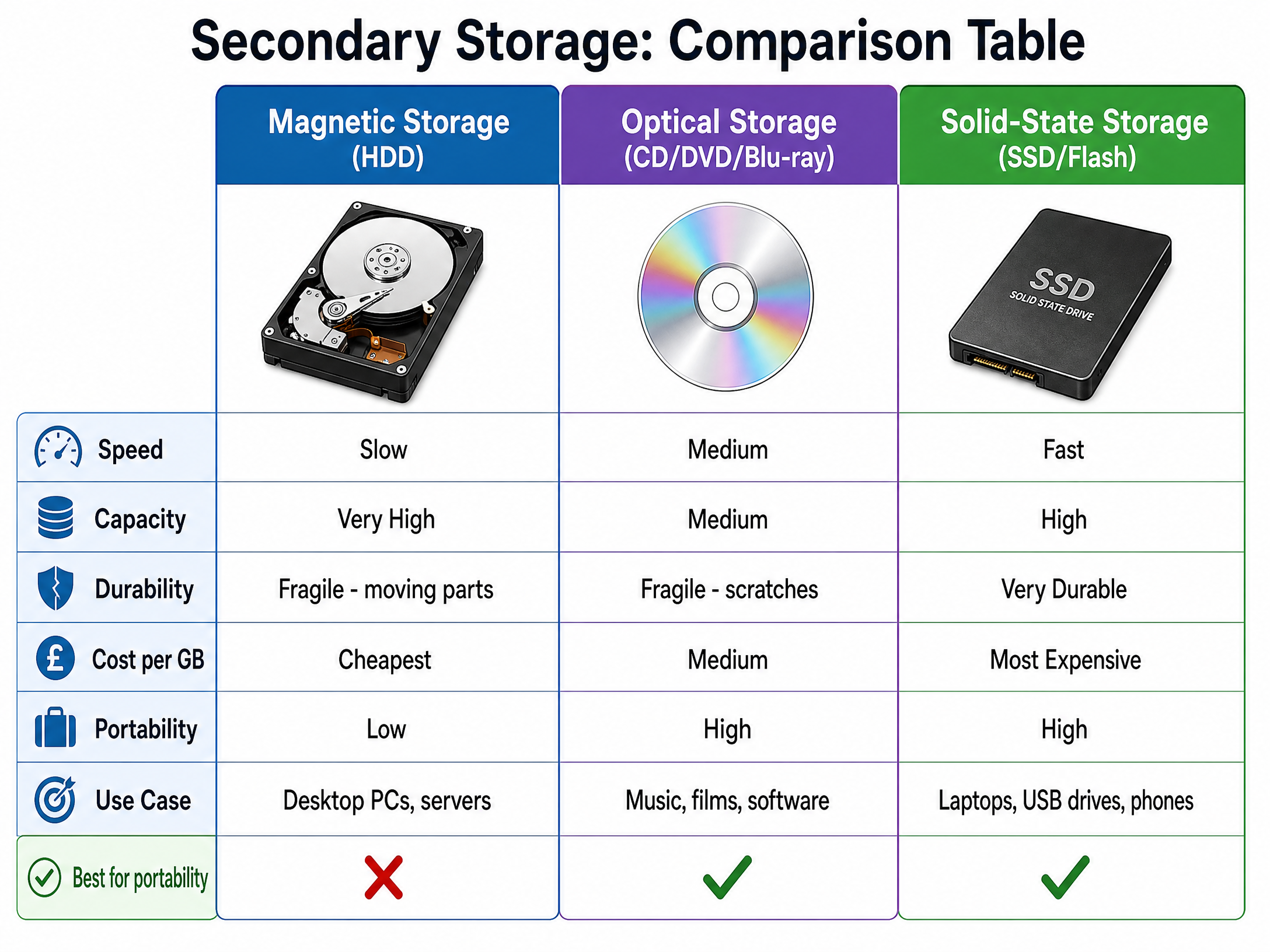

Concept 5: Secondary Storage

While RAM (primary storage) is fast, it is volatile—it loses its contents when power is lost. We need secondary storage for permanent, non-volatile data retention.

There are three main categories:

• Magnetic (e.g., Hard Disk Drive - HDD): Uses magnetic fields to magnetise tiny sections of a spinning metal platter. High capacity, cheap, but has moving parts so is fragile and slower than solid-state.
• Optical (e.g., CD, DVD, Blu-ray): Uses a laser to read pits and lands burned into a reflective disc. Very portable and cheap, but low capacity and easily scratched.
• Solid-State (e.g., SSD, USB Flash Drive): Uses flash memory chips with no moving parts. Very fast, durable, and increasingly common, but more expensive per GB than magnetic storage.

Concept 6: System Software

System software manages the computer hardware and provides a platform for application software. It is divided into the Operating System and Utility Software.

The Operating System (OS) has four main management roles:

1. File Management: Organising files into hierarchical folders, managing permissions, and handling read/write operations to storage.
2. Process Management: Allocating CPU time to different running programs (multitasking) and managing system resources.
3. Peripheral Management: Communicating with hardware devices (printers, mice) using device drivers.
4. User Management: Handling user accounts, passwords, and access rights.

Utility Software performs specific maintenance tasks:

• Anti-malware: Detects and removes malicious software.
• Backup: Creates copies of data for recovery.
• Compression: Reduces file sizes to save space and speed up transmission.
• Defragmentation: Reorganises fragmented files on a magnetic hard drive so they are stored contiguously, speeding up read times. (Note: Never defragment an SSD!)

Concept 7: Translators

Computers only understand machine code (binary). Humans write in high-level languages (like Python or Java). A translator is needed to bridge the gap.

• Compiler: Translates the entire source code into machine code in one go, creating a standalone executable file. The program runs very quickly, but compilation takes time, and errors are only reported at the end.
• Interpreter: Translates and executes the source code line by line. It does not create an executable file. It is slower at runtime but excellent for debugging, as it stops immediately when it finds an error.

Listen to the podcast below for a complete audio walkthrough of these concepts, including examiner tips and a quick-fire quiz!

Practical Applications

Understanding computer architecture isn't just theoretical. When building a gaming PC, understanding the FDE cycle helps you realise why a CPU with a higher clock speed (more cycles per second) improves frame rates. When choosing storage for a smartphone, understanding that solid-state storage is durable and compact explains why we don't put spinning magnetic hard drives in phones.
